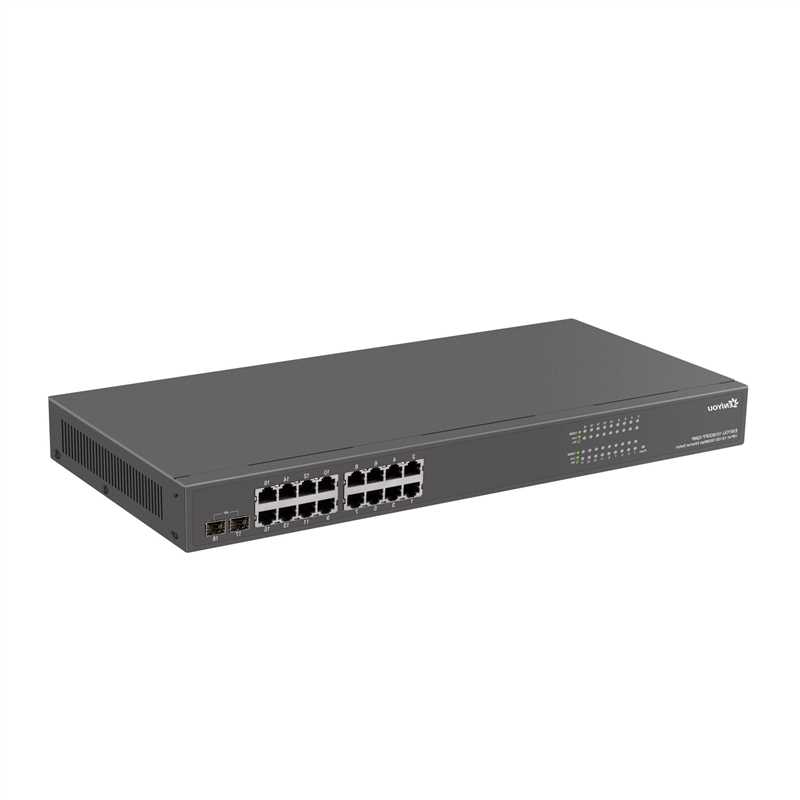

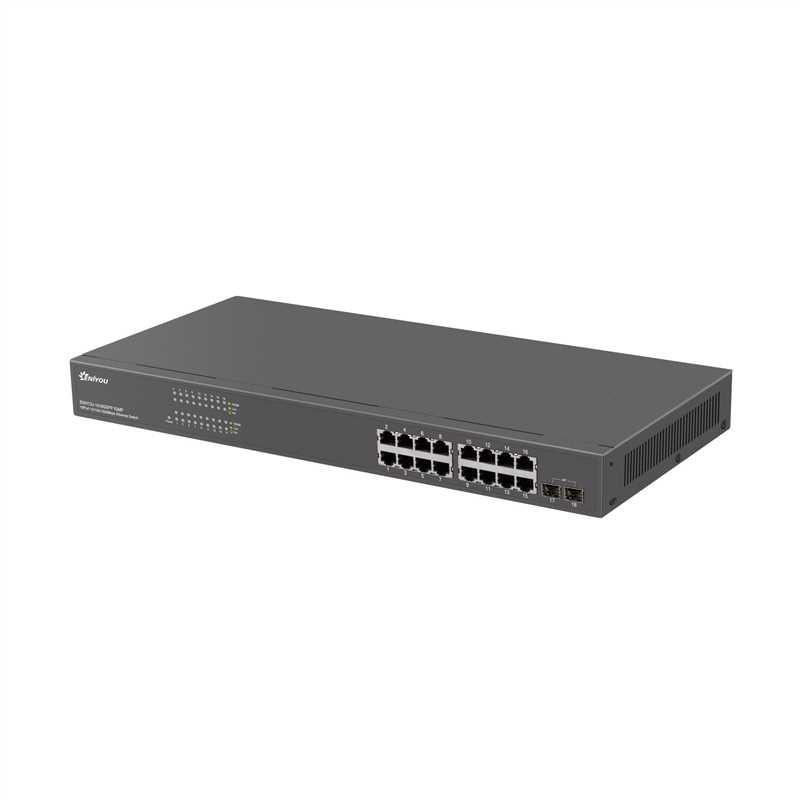

16 Port Rack-Mounted 10/100/1000 Mbps + 2SFP Gigabit Switch Hub-IGMP
Model:1018GSFP -IGMP
Material:Metal box
Color:Grey
Ports:Gigabit ethernet
Input Interface:Gigabit ethernet
Interface Type:RJ45
Product Dimension:440*220*44mm
Single package size:534*308*94mm
Single gross weight:3.1 KG
Package Type:color box
Qty per carton:4pcs
G.Weight:12.6KG
Carton Dimension:570*390*330mm
Application:computer peripherals, computer accessaries
Product Specifications:16 Port 10/100/1000 Mbps + 2SFP Gigabit Switch Hub-IGMP
Description
Product Name: 16 Port 10/100/1000 Mbps + 2SFP Gigabit Switch Hub-IGMP
Main IC: RTL8382L+RTL8218B
Housing Material: Metal Box
Standards and protocols:IEEE802.3/IEEE 802.3u/IEEE802.3ab/IEEE 802.3x
Standard configuguration:16 10/100/1000M RJ-45 MDI/MDI-X port,2 gigabit SFP port
Flash: 16Mbit
Transmit rate: 38.7Mpps
Backboard bandwidth: 52Gbps
Forward rate:
10Mbps: 14880pps
100Mbps: 148800pps
1000Mbps: 1488000pps
Swap mode:Store-and-Forward
MAC address table:8K
Product Dimension:440*220*44(mm)
Consumption:15W
Energy conservation design:Fanless
LED light:Power,Link/Act,1000 Mbps
Environment:Opertaing temperature:0-50℃ Storage temperature: -40-70 ℃
Temperature:Opertating humidity: 10%-90% non-condensing
Environment: Storage humidity: 5%-90% non-condensing
Humidity:Internal Power Supply,Input: 100-240 V/AC,50-60 Hz;
